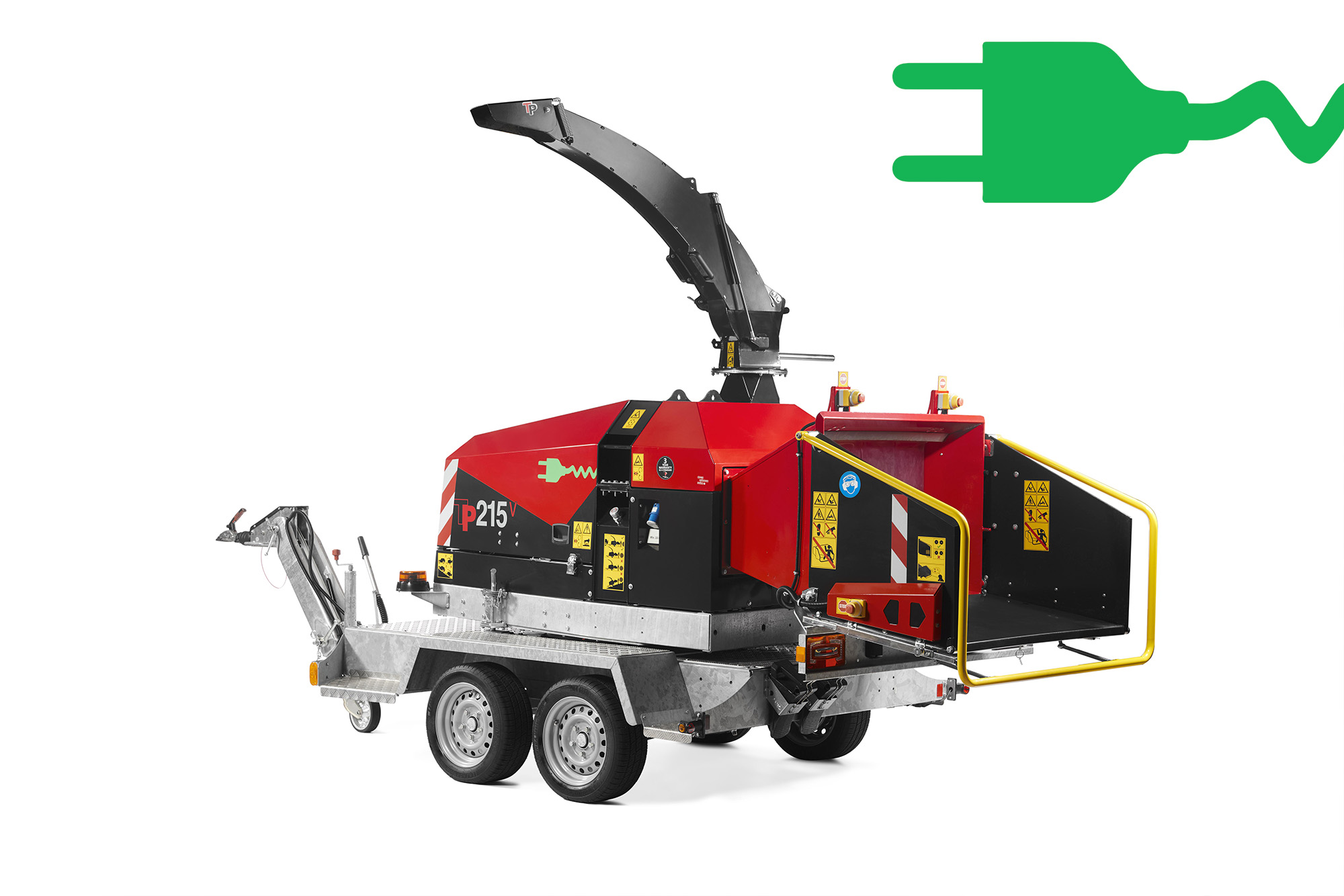

TP 215 MOBILE ZE
Infeed
| Roller opening: | 216 x 265 mm |
| Number of rollers: | 2 |
| Roller position: | Horizontal |
Chipper type
| Chipper type: | Disc chipper |
| Chipping angle: | 90º |
| TP OPTICUT: | Yes |
| TP TWIN DISC: | Yes |
| Number of knifes: | 4 |
| Number of cuts per turn: | 4 |
| Woodchip size: | 4-14 mm |
| Rotorspeed: | 1350 r/min |
| Rotordiameter: | 760 mm |
| Rotorweight: | 140 kg |
| Transmission: | TP STARTER |
| Counter knife horizontal: | 1 turnable |
| Counter knife vertical: | 2 |
| Replacement of wearing plate: | Yes |
| Wearing plate: | Yes |
| TP CHIP KIT: | Option |
Spout System
| TP VARIO SPOUT: | Option |
| TP FIXED SPOUT: | Standard |
Stress control
| Stress control: | TP PILOT + |
Engine
| Engine type:: | Permanent Magnet Motor |
| Fuel: | Electric |
| Engine power: | 29 KW |
| Battery LFP, 460 AH, 96VDC: | 44 kWh |

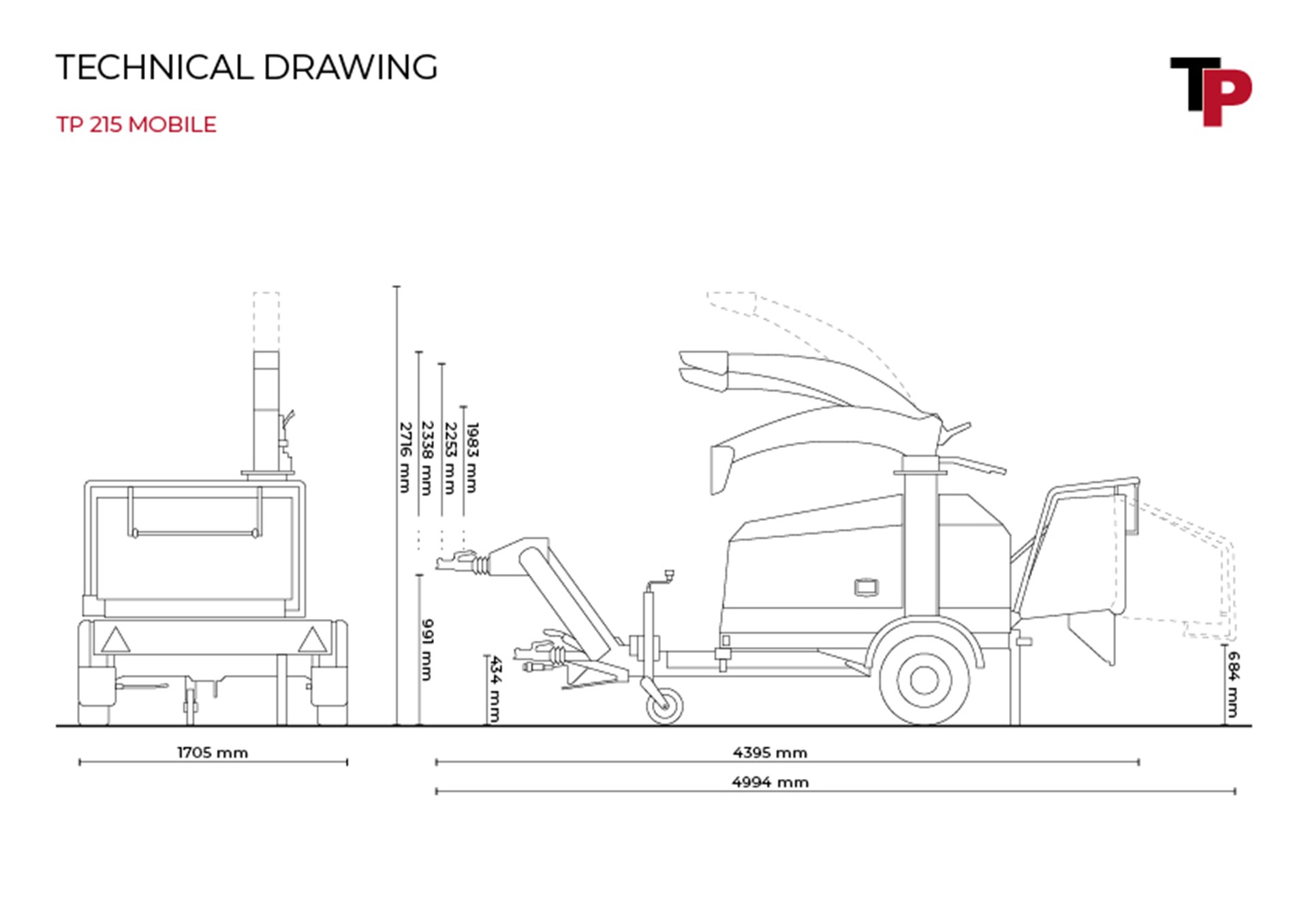

Dimensions
| Length (transport/operation): | 4395 mm/4485 mm |
| Width: | 1705 mm |
| Height (t/o) TP VARIO SPOUT: | 1983 mm/2338-2716 mm |
| Height (t/o) TP FIXED SPOUT: | 2253 mm |

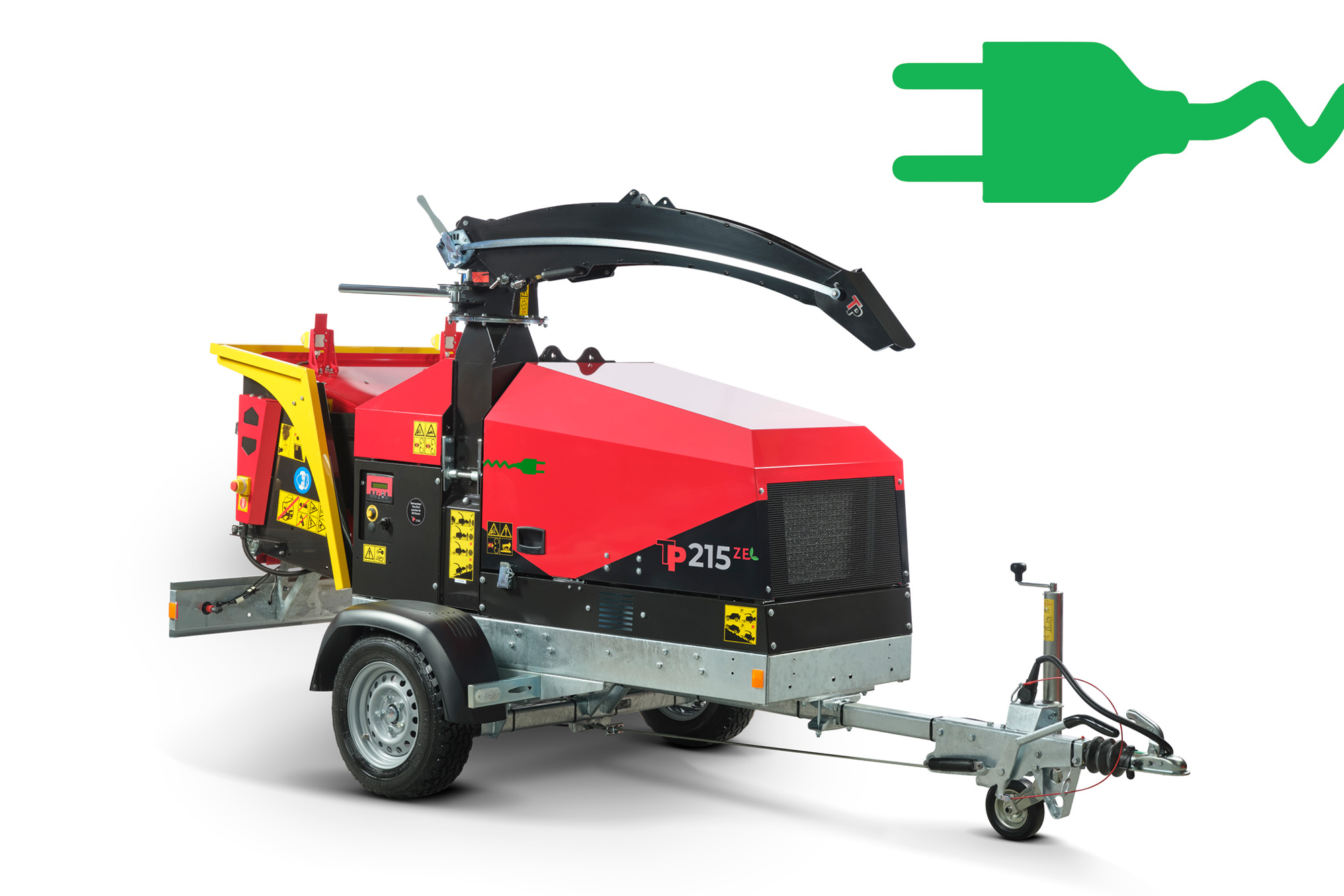

| Weight - single axle: | 1476 kg |
| Weight - twin axle/turntable: | 1960 kg |
