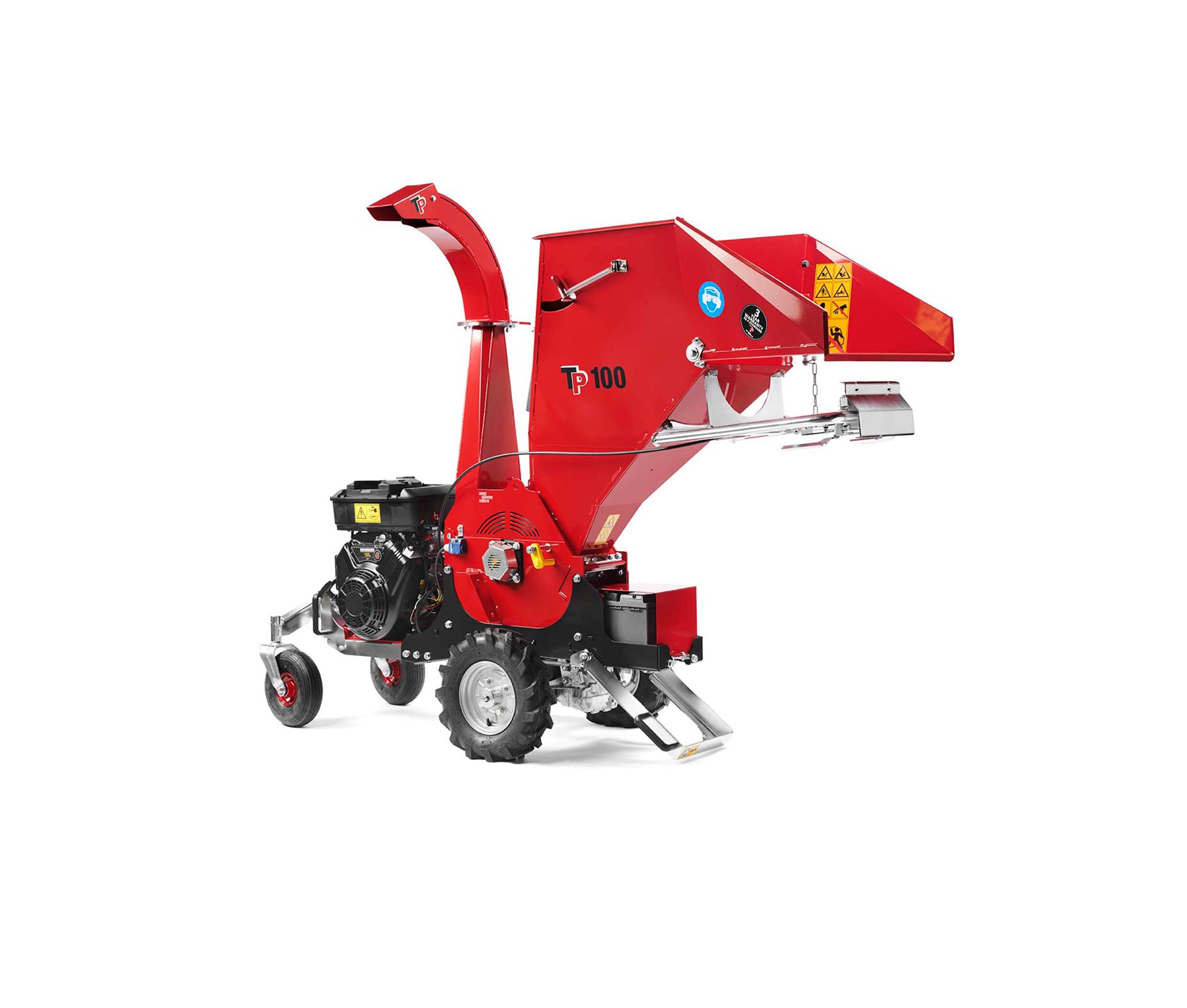

TP 100 MOBILE
Infeed
| Roller Opening: | 150 x 275 |
| Number of rollers: | 1 (drum) |
| Roller Position: | Horizontal |
Chipper type
| Chipper type: | Drum |
| Chipping angle: | 55º |
| TP OPTICUT: | No |
| TP TWIN DISC: | No |
| Number of knifes: | 2 |
| Number of cuts per turn: | 2 |
| Rotorspeed: | 2000 r/min |
| Rotordiameter: | 410 mm |
| Rotorweight: | 48 kg |
| Transmission: | belt |
| Counter knife horizontal: | 1 reversible (4 times) |
| Replacement of wearing plate: | No |
| Wearing plate: | Ja |
| TP CHIP KIT: | No |
Spout System
| Additional spout 0,3m: | Option |
Stress control
| Stress Control: | No |
Engine
| Engine: | HONDA 20hp eller B&S VANGUARD 18hp |
| Fuel: | Petrol |
| Engine power: | 20 hp/14 kw eller 18 hp/13 kw |
| Fuel consumption: | 5l/h |

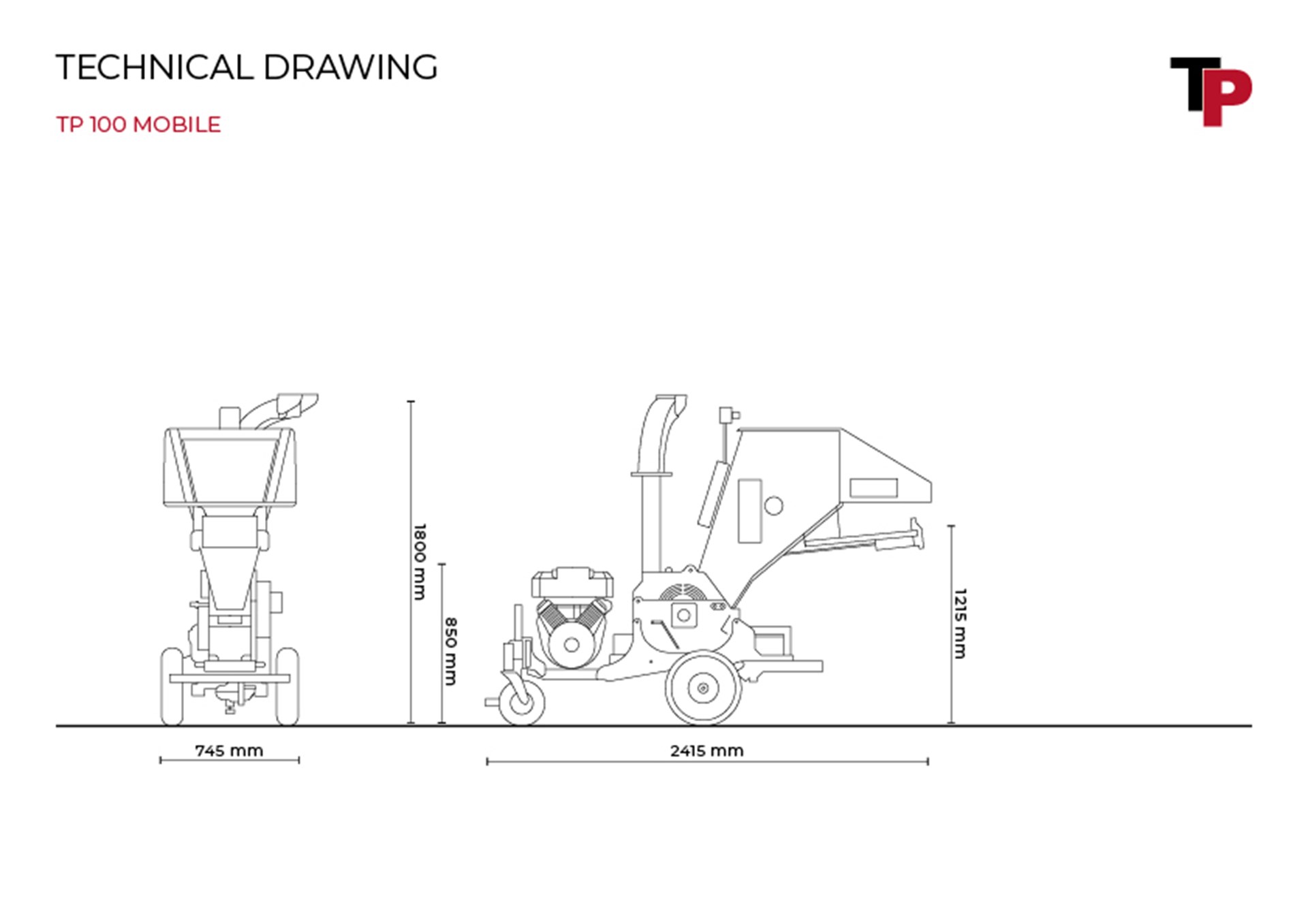

Dimensions
| Length (transport/operation): | 2345 mm |
| Width: | 740 mm |
| Height: | 1719 mm |
| Weight: | 314 kg |
Mover
| Mover Hydrostatic: | Option |
